Drive Plate Removal/Installation [FS5A-El]: Notes
WARNING: This page is about a different car, the 2009 Mazda 6. However, it is still accessible from the selected car via links, so may be relevant.
CAUTION:
- Parts for engines manufactured in Mexico and Hiroshima cannot be used interchangeably as the engine will not operate correctly resulting in a serious malfunction. To prevent this, when replacing parts refer to the 'VEHICLE IDENTIFICATION NUMBER (VIN) CODE' table and verify the engine's place of manufacture before performing the servicing. (See VEHICLE IDENTIFICATION NUMBER (VIN) CODE )
- Remove the transaxle. (See AUTOMATIC TRANSAXLE REMOVAL/INSTALLATION [FS5A-EL] .)

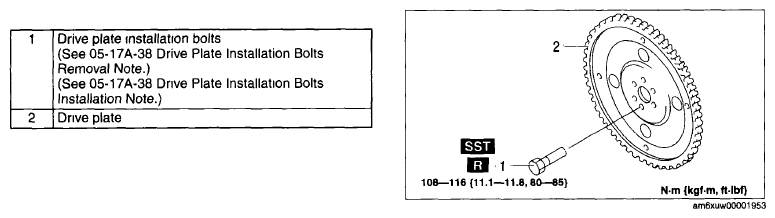

- Remove in the order indicated in the table.
- Install in the reverse order of removal
