Section 587 (On-Board Diagnostic [Automatic Transaxle Aw6A-El))
>>
On-Board Diagnostic System Wiring Diagram [Aw6A-El]
On-Board Diagnostic System Wiring Diagram [Aw6A-El]
WARNING:
This page is about a different car, the 2009 Mazda 6. However, it is still accessible from the selected car via links, so may be relevant.

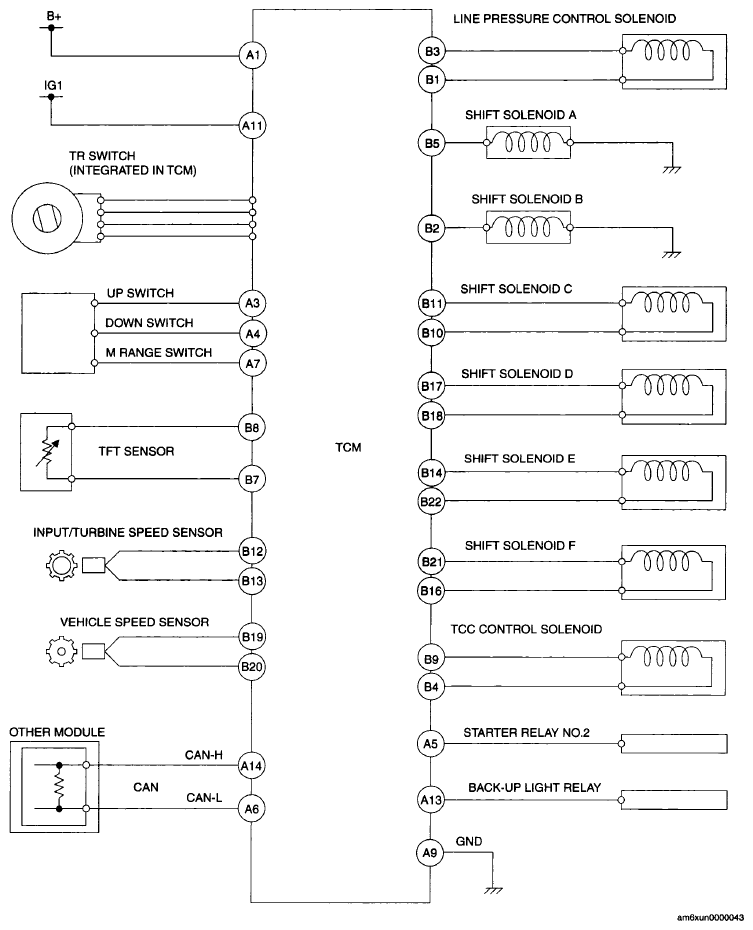

Fig 1: On-Board Diagnostic System Wiring Diagram (AW6A-EL)
Courtesy of MAZDA MOTORS CORP.
