DTC P2763:00 [Aw6A-El]: Notes
WARNING: This page is about a different car, the 2009 Mazda 6. However, it is still accessible from the selected car via links, so may be relevant.
DETECTION CONDITION AND POSSIBLE CAUSE
| DTC P2763:00 |
TCC control solenoid circuit malfunction (short to power) |
| DETECTION CONDITION |
- Short circuit in TCC control solenoid signal system (when TCM monitors solenoid output voltage, voltage that differs from signal output by CPU in TCM is detected)
Diagnostic support note:
- The MIL illuminates if the TCM detects the above malfunction condition during the first drive cycle.
- The AT warning light illuminates if the TCM detects the above malfunction condition during the first drive cycle
- PENDING CODE is not available
- FREEZE FRAME DATA is available
- The DTC is stored in the TCM memory
|
| POSSIBLE CAUSE |
- Coupler component connector or terminal malfunction

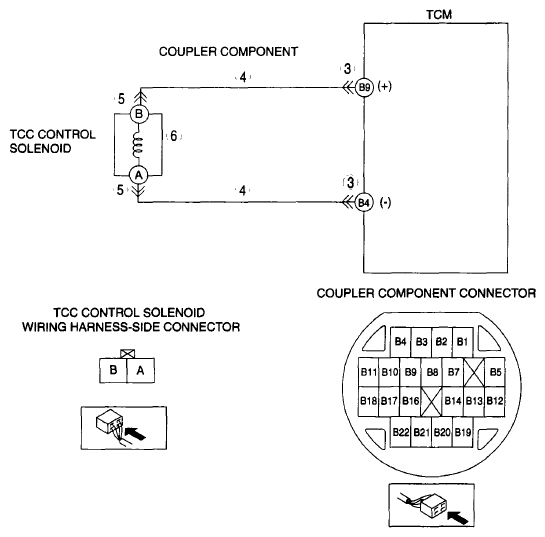

- Short to power supply in wiring harness between TCC control solenoid terminal B and TCM terminal B9
- Short to power supply in wiring harness between TCC control solenoid terminal A and TCM terminal B4
- TCC control solenoid connector or terminal malfunction
- TCC control solenoid malfunction
- TCM malfunction
|
 Courtesy of MAZDA MOTORS CORP.
|
