DTC P0712:00 [Aw6A-El]: Notes

WARNING: This page is about a different car, the 2009 Mazda 6. However, it is still accessible from the selected car via links, so may be relevant.

DETECTION CONDITION AND POSSIBLE CAUSE

DTC P0712:00	TFT sensor circuit malfunction (short to GND)
DETECTION CONDITION	TCM detects ATF temperature of 200°C {392°F} or more. Diagnostic support note: The MIL illuminates if the TCM detects the above malfunction condition during the first drive cycle. The AT warning light illuminates if the TCM detects the above malfunction condition during the first drive cycle. PENDING CODE is not available. FREEZE FRAME DATA is available. The DTC is stored in the TCM memory.

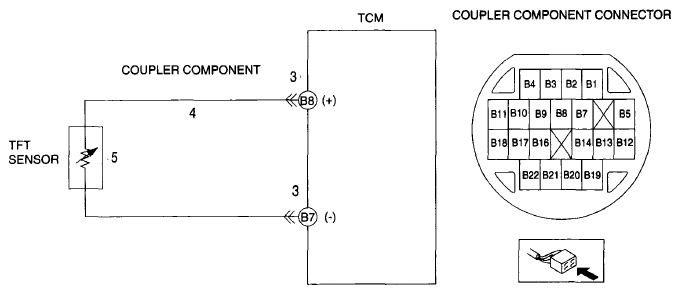

POSSIBLE CAUSE	Coupler component connector or terminal malfunction Short to GND in wiring harness between TFT sensor and TCM terminal B8 TFT sensor malfunction TCM malfunction
Courtesy of MAZDA MOTORS CORP.

DTC P0712:00

TFT sensor circuit malfunction (short to GND)

DETECTION CONDITION

TCM detects ATF temperature of 200°C {392°F} or more.

Diagnostic support note:

The MIL illuminates if the TCM detects the above malfunction condition during the first drive cycle.
The AT warning light illuminates if the TCM detects the above malfunction condition during the first drive cycle.
PENDING CODE is not available.
FREEZE FRAME DATA is available.
The DTC is stored in the TCM memory.

POSSIBLE CAUSE

Coupler component connector or terminal malfunction
Short to GND in wiring harness between TFT sensor and TCM terminal B8
TFT sensor malfunction
TCM malfunction

Courtesy of MAZDA MOTORS CORP.
