DTC P0713:00 [FS5A-El]: Notes
WARNING: This page is about a different car, the 2009 Mazda 6. However, it is still accessible from the selected car via links, so may be relevant.
DETECTION CONDITION AND POSSIBLE CAUSE
| DTC P0713:00 |
TFT sensor circuit high input |
| DETECTION CONDITION |
- The TCM detects that input voltage from the TFT sensor is more than 4.66 V for 150 s at vehicle speed 20 km/h {12 mph} or more.
Diagnostic support note
- The MIL illuminates if the TCM detects the above malfunction condition during the first drive cycle.
- The AT warning light illuminates if the TCM detects the above malfunction condition during the first drive cycle.
- PENDING CODE is available.
- FREEZE FRAME DATA is available.
- The DTC is stored in the TCM memory.
|

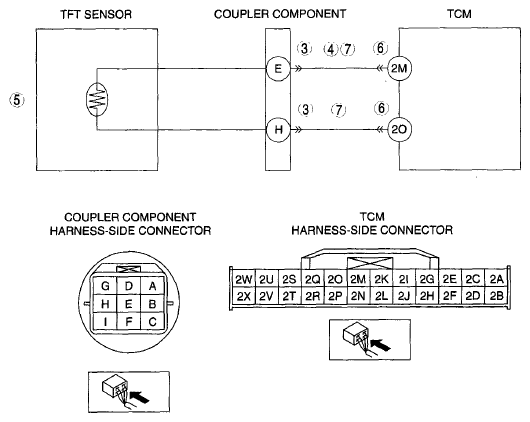

| POSSIBLE CAUSE |
- Coupler component connector or terminal malfunction
- Short to power supply in wiring harness between TFT sensor and TCM terminal 2M
- TFT sensor malfunction
- TCM connector or terminal malfunction
- Open circuit in wiring harness between TFT sensor and TCM terminal 2M
- Open circuit in wiring harness between TFT sensor and TCM terminal 2O
- TCM malfunction
|
 Courtesy of MAZDA MOTORS CORP.
|
