DTC P0707:00 [FS5A-El]: Notes

WARNING: This page is about a different car, the 2009 Mazda 6. However, it is still accessible from the selected car via links, so may be relevant.

DETECTION CONDITION AND POSSIBLE CAUSE

DTC P0707:00	TR switch circuit low input
DETECTION CONDITION	The TCM detects that input voltage from the TR switch is less than 0.49 V for 100 s when the following conditions are met. Vehicle speed: more than 20 km/h {12 mph} Engine speed: more than 530 rpm Diagnostic support note The MIL illuminates if the TCM detects the above malfunction condition during the first drive cycle. The AT warning light illuminates if the TCM detects the above malfunction condition during the first drive cycle. PENDING CODE is available. FREEZE FRAME DATA is available. The DTC is stored in the TCM memory.
POSSIBLE CAUSE	TR switch connector or terminal malfunction Short to GND in wiring harness between TR switch terminal C and TCM terminal 2H TR switch malfunction TCM connector or terminal malfunction TCM malfunction
Courtesy of MAZDA MOTORS CORP.

DTC P0707:00

TR switch circuit low input

DETECTION CONDITION

The TCM detects that input voltage from the TR switch is less than 0.49 V for 100 s when the following conditions are met.
- Vehicle speed: more than 20 km/h {12 mph}
- Engine speed: more than 530 rpm

Diagnostic support note

The MIL illuminates if the TCM detects the above malfunction condition during the first drive cycle.
The AT warning light illuminates if the TCM detects the above malfunction condition during the first drive cycle.
PENDING CODE is available.
FREEZE FRAME DATA is available.
The DTC is stored in the TCM memory.

POSSIBLE CAUSE

TR switch connector or terminal malfunction

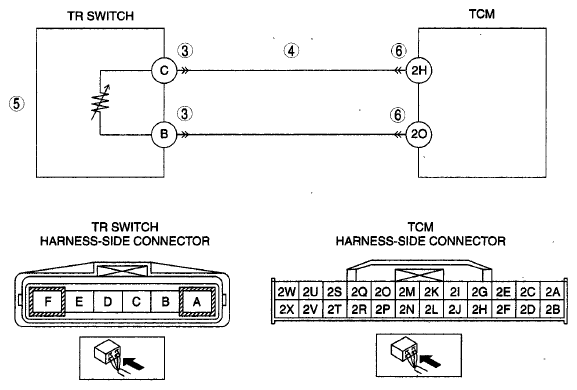

Short to GND in wiring harness between TR switch terminal C and TCM terminal 2H
TR switch malfunction
TCM connector or terminal malfunction
TCM malfunction

Courtesy of MAZDA MOTORS CORP.
