DTC P0706:00 [FS5A-El]: Notes
WARNING: This page is about a different car, the 2009 Mazda 6. However, it is still accessible from the selected car via links, so may be relevant.
DETECTION CONDITION AND POSSIBLE CAUSE
| DTC P0706:00 |

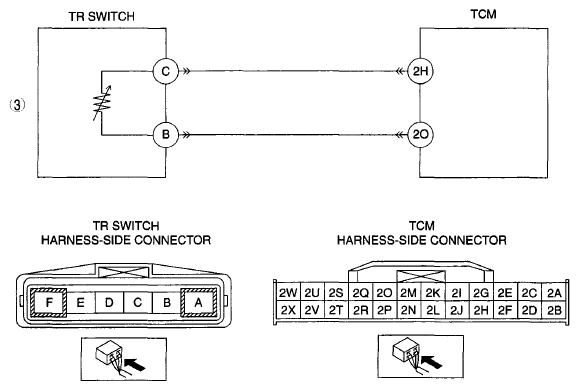

TR switch circuit range/performance |
| DETECTION CONDITION |
- The TCM detects no position/range signal for 100 s when the following conditions are met.
- Vehicle speed: more than 20 km/h {12 mph}
- Engine speed: more than 530 rpm
- Input voltage from the TR switch: more than 0.49 V
Diagnostic support note
- The MIL illuminates if the TCM detects the above malfunction condition in two consecutive drive cycles or in one drive cycle while the DTC for the same malfunction has been stored in the TCM.
- The AT warning light illuminates if the TCM detects the above malfunction condition in two consecutive drive cycles or in one drive cycle while the DTC for the same malfunction has been stored in the TCM.
- PENDING CODE is available.
- FREEZE FRAME DATA is available.
- The DTC is stored in the TCM memory.
|
| POSSIBLE CAUSE |
- TR switch misadjustment
- TR switch malfunction
- TCM malfunction
|
 Courtesy of MAZDA MOTORS CORP.
|
