Section 585 (On-Board Diagnostic [Dynamic Stability Control))
>>
Dynamic Stability Control System Wiring Diagram [Dynamic Stability Control (DSC)]
Dynamic Stability Control System Wiring Diagram [Dynamic Stability Control (DSC)]
WARNING:
This page is about a different car, the 2009 Mazda 6. However, it is still accessible from the selected car via links, so may be relevant.

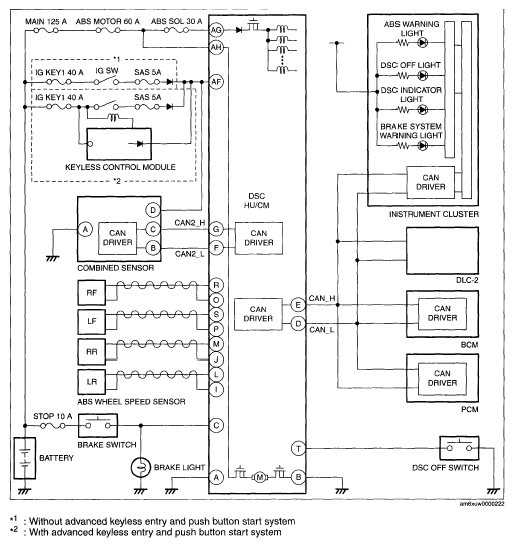

Fig 1: Dynamic Stability Control System Wiring Diagram
Courtesy of MAZDA MOTORS CORP.
