HVAC System Wiring Diagram

WARNING: This page is about a different car, the 2009 Mazda 6. However, it is still accessible from the selected car via links, so may be relevant.

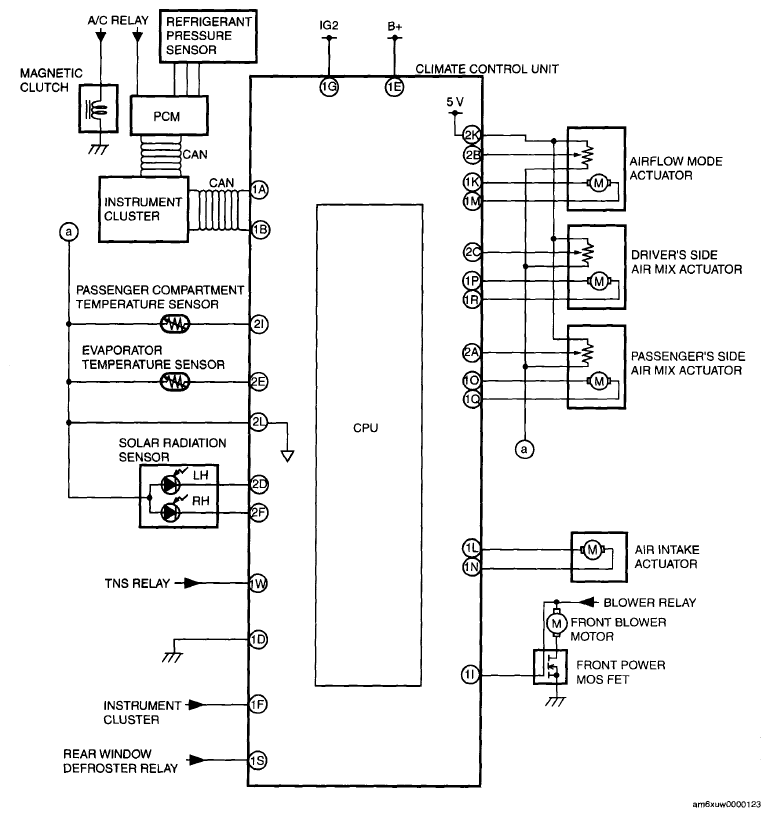

Fig 1: HVAC System Wiring Diagram
G06206030Courtesy of MAZDA MOTORS CORP.
