DTC B1A61:11, B1A61:13: Notes
WARNING: This page is about a different car, the 2009 Mazda 6. However, it is still accessible from the selected car via links, so may be relevant.

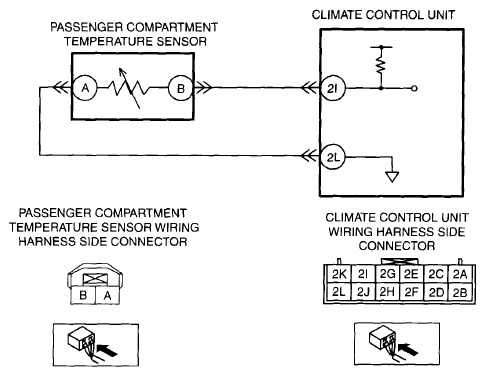

DTC B1A61, B1A61 DETECTION CONDITION AND POSSIBLE CAUSE
| DTC B1A61:11 |
Passenger compartment temperature sensor circuit short to ground |
| DTC B1A61:13 |
Passenger compartment temperature sensor circuit open |
| POSSIBLE CAUSE |
- Passenger compartment temperature sensor malfunction
- Open or short circuit in wiring harness between climate control unit connector terminal 2I and passenger compartment temperature sensor connector terminal B
- Open or short circuit in wiring harness between climate control unit connector terminal 2L and passenger compartment temperature sensor connector terminal A
- Short to ground in wiring harness between climate control unit connector terminal 2I and passenger compartment temperature sensor connector terminal B
- Connector or terminal malfunction
|
 Courtesy of MAZDA MOTORS CORP.
|
