Resistor Removal/Installation [Manual Air Conditioner]: Notes

WARNING: This page is about a different car, the 2009 Mazda 6. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect the negative battery cable.
  2. Remove in the order indicated in the table

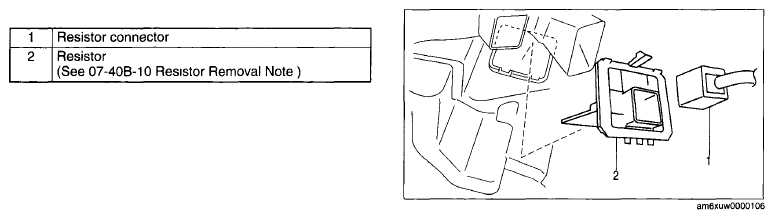

    Fig 1: Identifying Resistor Connector And Resistor
    G06205619Courtesy of MAZDA MOTORS CORP.
  3. Install in the reverse order of removal.
