Magnetic Clutch Disassembly/Assembly [Manual Air Conditioner]: Notes
WARNING: This page is about a different car, the 2009 Mazda 6. However, it is still accessible from the selected car via links, so may be relevant.

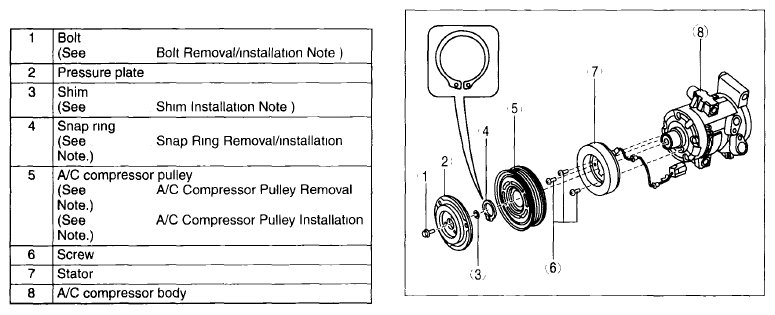

- Disassemble in the order indicated in the table
- Assemble in the reverse order of disassembly
- Adjust the magnetic clutch clearance. See MAGNETIC CLUTCH ADJUSTMENT [FULL-AUTO AIR CONDITIONER] .
