Airflow Mode Link Set Installation Note

WARNING: This page is about a different car, the 2009 Mazda 6. However, it is still accessible from the selected car via links, so may be relevant.

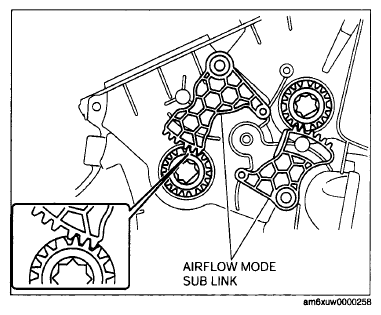

Install the airflow mode sub link as shown in the figure.

Fig 1: Identifying Airflow Mode Sub Link
Courtesy of MAZDA MOTORS CORP.

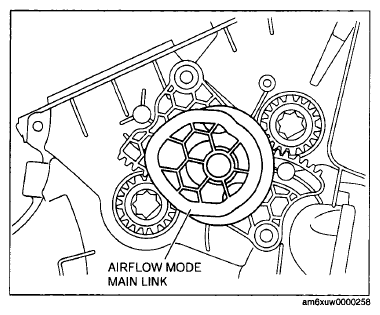

Install the airflow mode main link as shown in the figure.

Fig 2: Identifying Airflow Mode Sub Link
Courtesy of MAZDA MOTORS CORP.
