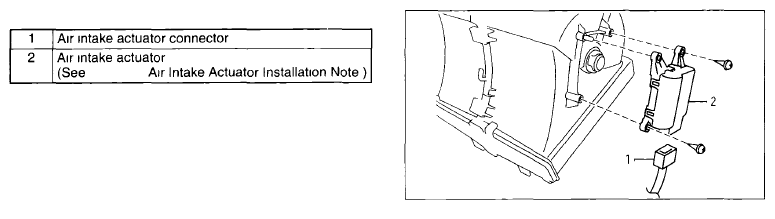

Air Intake Actuator Removal/Installation [Manual Air Conditioner]: Notes
WARNING: This page is about a different car, the 2009 Mazda 6. However, it is still accessible from the selected car via links, so may be relevant.
- Disconnect the negative battery cable.
- Remove the glove compartment. See GLOVE COMPARTMENT REMOVAL/INSTALLATION .
- Remove in the order indicated in the table.
- Install in the reverse order of removal
