Passenger Compartment Temperature Sensor Inspection [Full-Auto Air Conditioner]
WARNING: This page is about a different car, the 2009 Mazda 6. However, it is still accessible from the selected car via links, so may be relevant.
- Measure the temperature around the passenger compartment temperature sensor and measure the resistance between passenger compartment temperature sensor terminal.

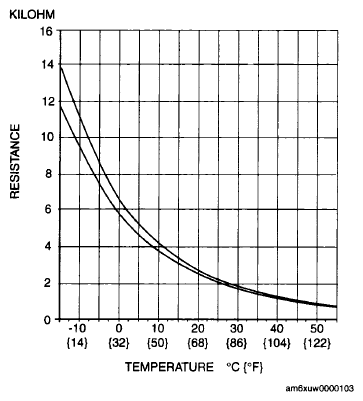

- If the characteristics of the passenger compartment temperature sensor are not as shown in the graph, replace the passenger compartment temperature sensor.
