Front Power Metal Oxide Semiconductor Field Effect Transistor (Power Mos FET) Removal/Installation [Full-Auto Air Conditioner]: Notes

WARNING: This page is about a different car, the 2009 Mazda 6. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect the negative battery cable.
  2. Remove in the order indicated in the table.

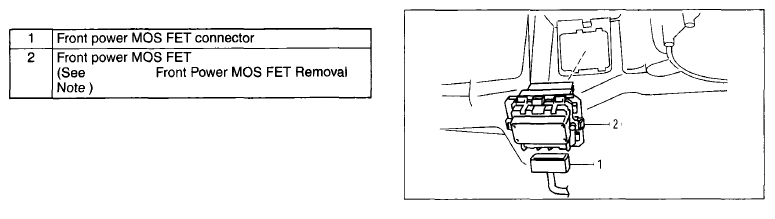

    Fig 1: Identifying MOS-FET And MOS-FET Transistor Connector
    G06200338Courtesy of MAZDA MOTORS CORP.
  3. Install in the reverse order of removal.
