Climate Control Unit Removal/Installation [Full-Auto Air Conditioner]

WARNING: This page is about a different car, the 2009 Mazda 6. However, it is still accessible from the selected car via links, so may be relevant.

Disconnect the negative battery cable.
Remove the following parts.
1. Upper panel. See UPPER PANEL REMOVAL/INSTALLATION .
2. Decoration panel. See DECORATION PANEL REMOVAL/INSTALLATION .
3. Shift lever knob (MTX). See MANUAL TRANSAXLE SHIFT MECHANISM LOCATION INDEX .
4. Shift panel. See SHIFT PANEL REMOVAL/INSTALLATION .
5. Center panel lower. See CENTER PANEL LOWER REMOVAL/INSTALLATION .
Remove in the order indicated in the table

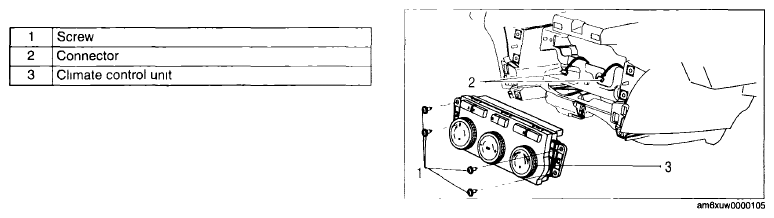

Fig 1: Identifying Climate Control Unit Components
Courtesy of MAZDA MOTORS CORP.
Disconnect the climate control unit connectors and remove the climate control unit.
Install in the reverse order of removal
