Driver's Side Air Mix Actuator

WARNING: This page is about a different car, the 2009 Mazda 6. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect the negative battery cable.
  2. Remove in the order indicated table

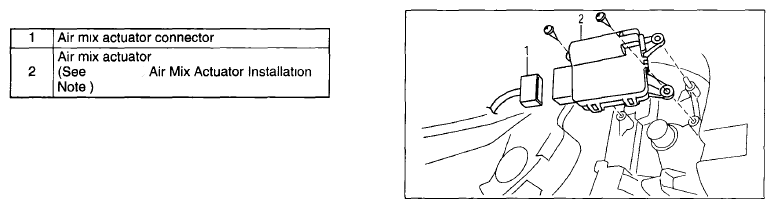

    Fig 1: Identifying Air Mix Actuator Components
    G06200323Courtesy of MAZDA MOTORS CORP.
  3. Install in the reverse order of removal.
