Purge Solenoid Valve Removal/Installation [MZI-3.7]

WARNING: This page is about a different car, the 2009 Mazda 6. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect the negative battery cable. See BATTERY REMOVAL/INSTALLATION [MZI-3.7] .
  2. Remove the PCM. See PCM REMOVAL/INSTALLATION [MZI-3.7] .
  3. Remove the PCM bracket. See PCM REMOVAL/INSTALLATION [MZI-3.7] .
  4. Remove in the order indicated in the table.

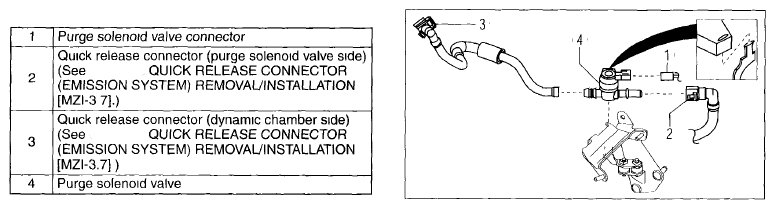

    Fig 1: Identifying Purge Solenoid Valve Connector, Quick Release Connector And Purge Solenoid Valve
    G06205103Courtesy of MAZDA MOTORS CORP.
  5. Install in the reverse order of removal
