Positive Crankcase Ventilation (PCV) Fitting Removal/Installation [MZI-3.7]

WARNING: This page is about a different car, the 2009 Mazda 6. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect the negative battery cable. See BATTERY REMOVAL/INSTALLATION [MZI-3.7] .
  2. Set the power steering fluid tank out of the way. See POWER STEERING OIL PUMP REMOVAL/INSTALLATION [MZI-3.7] .
  3. Remove in the order indicated in the table.

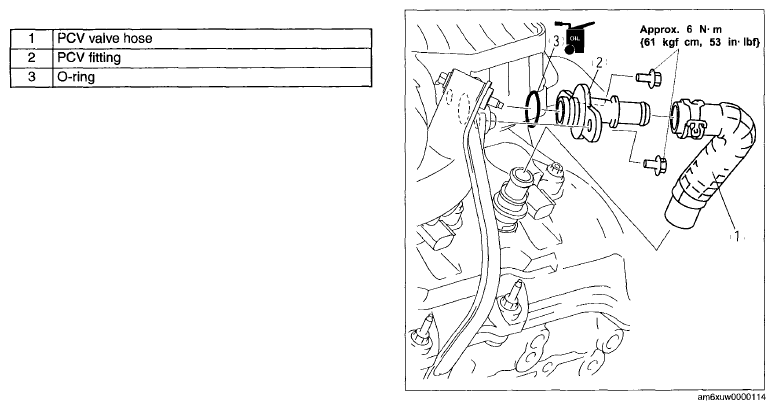

    Fig 1: Identifying PCV Valve Hose, PCV Fitting And O-Ring
    G06205106Courtesy of MAZDA MOTORS CORP.
  4. Install in the reverse order of removal.
