Joint Hose Installation Note

WARNING: This page is about a different car, the 2009 Mazda 6. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the joint hose as shown in the figure.

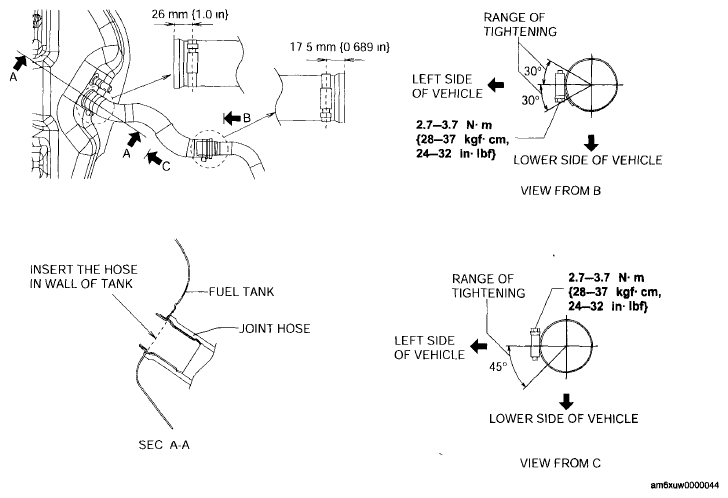

Fig 1: Locating Joint Hose Locations With Torque Specifications
G06205018Courtesy of MAZDA MOTORS CORP.
