Fuel Tank Side

WARNING: This page is about a different car, the 2009 Mazda 6. However, it is still accessible from the selected car via links, so may be relevant.

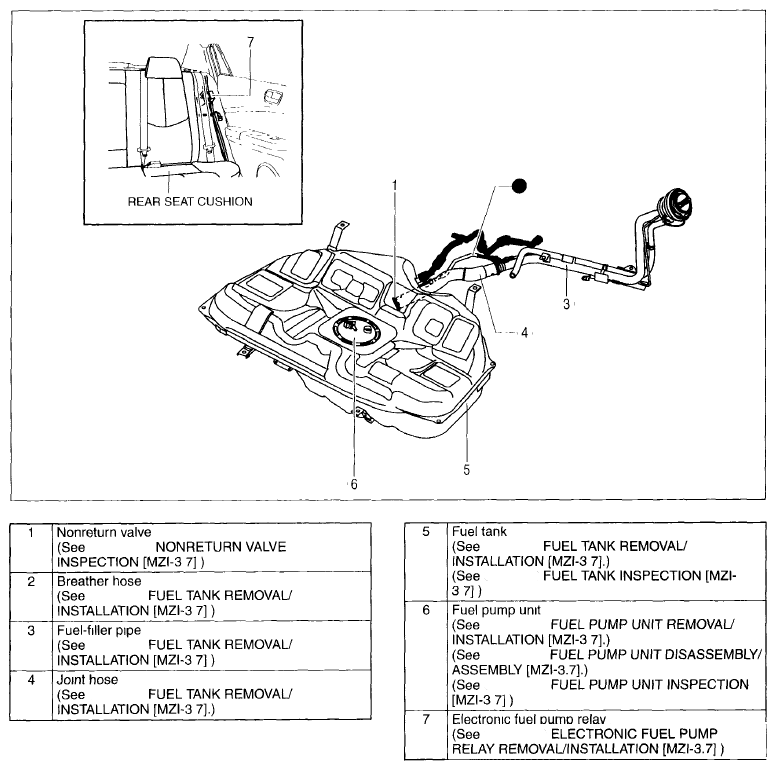

Fig 1: Identifying Fuel System Component Location (Fuel Tank Side)
G06205010Courtesy of MAZDA MOTORS CORP.
