Set Plate Removal Note

WARNING: This page is about a different car, the 2009 Mazda 6. However, it is still accessible from the selected car via links, so may be relevant.
CAUTION:
  • The set plate could be damaged if the SST is used with any play between the set plate and the SST. Securely attach the SST so that there is no gap between the SST tabs and the set plate.
  1. Install the SST  shown in the figure.
  2. Remove the set plate using the SST.

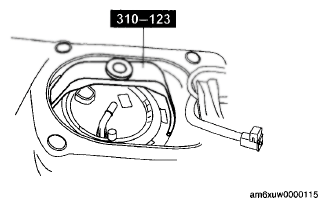

Fig 1: Identifying Set Plate
G06205024Courtesy of MAZDA MOTORS CORP.
