Fuel Pump Unit Disassembly/Assembly [MZI-3.7]
WARNING: This page is about a different car, the 2009 Mazda 6. However, it is still accessible from the selected car via links, so may be relevant.
- Remove the fuel pump unit. See
FUEL PUMP UNIT REMOVAL/INSTALLATION [MZI-3.7] .WARNING:
- Fuel line spills and leakage are dangerous. Fuel can ignite and cause serious injuries or death and damage. Fuel can also irritate skin and eyes. To prevent this, do not damage the sealing surface of the fuel pump unit when removing or installing.

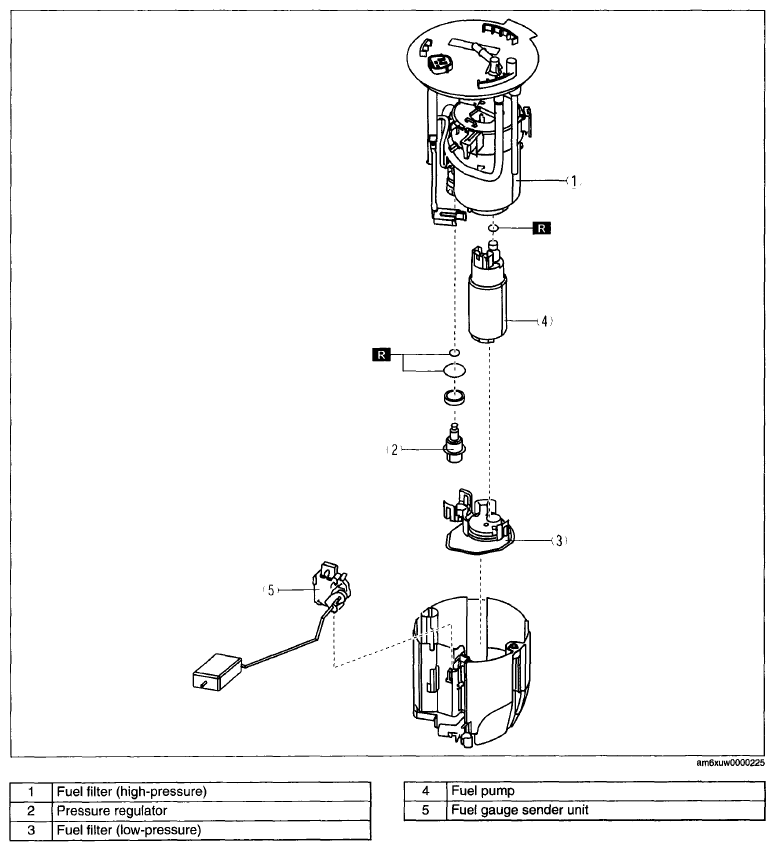

- Disassemble in the order indicated in the table.
- Assemble in the reverse order of disassembly.
