Fuel Injector Removal/Installation [MZI-3.7]: Notes

WARNING: This page is about a different car, the 2009 Mazda 6. However, it is still accessible from the selected car via links, so may be relevant.

WARNING:

Fuel is very flammable liquid. If fuel spills or leaks from the pressurized fuel system, it will cause serious injury or death and facility breakage. Fuel can also irritate skin and eyes. To prevent this, always complete the "Fuel Line Safety Procedure", while referring to the "BEFORE SERVICE PRECAUTION".

Complete the "BEFORE SERVICE PRECAUTION". See BEFORE SERVICE PRECAUTION [MZI-3.7] .
Disconnect the negative battery cable. See BATTERY REMOVAL/INSTALLATION [MZI-3.7] .
Remove the engine cover. See ENGINE COVER REMOVAL/INSTALLATION [MZI-3.7] .
Remove the dynamic chamber. See INTAKE-AIR SYSTEM REMOVAL/INSTALLATION [MZI-3.7] .
Remove in the order indicated in the table.

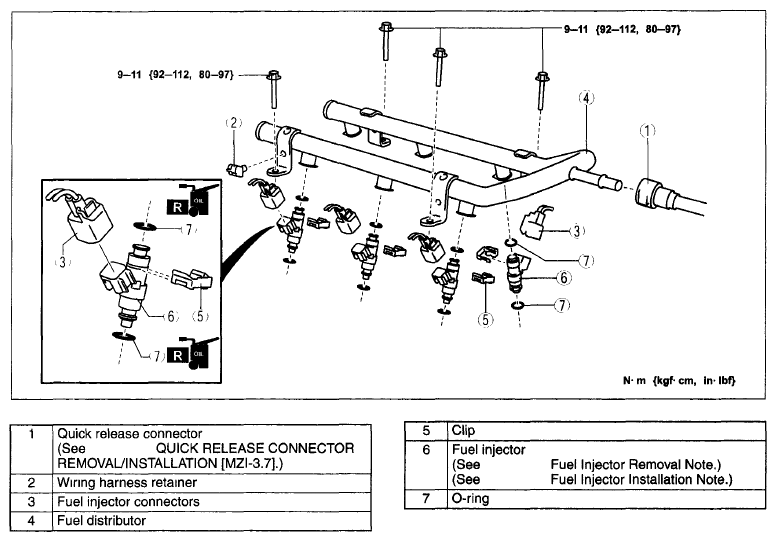

Fig 1: Fuel Injector Replacement Components With Torque Specifications
Courtesy of MAZDA MOTORS CORP.
Install in the reverse order of removal.
Complete the "AFTER SERVICE PRECAUTION". See AFTER SERVICE PRECAUTION [MZI-3.7] .
