Quick Diagnostic Chart [MZI-3.7]

WARNING: This page is about a different car, the 2009 Mazda 6. However, it is still accessible from the selected car via links, so may be relevant.

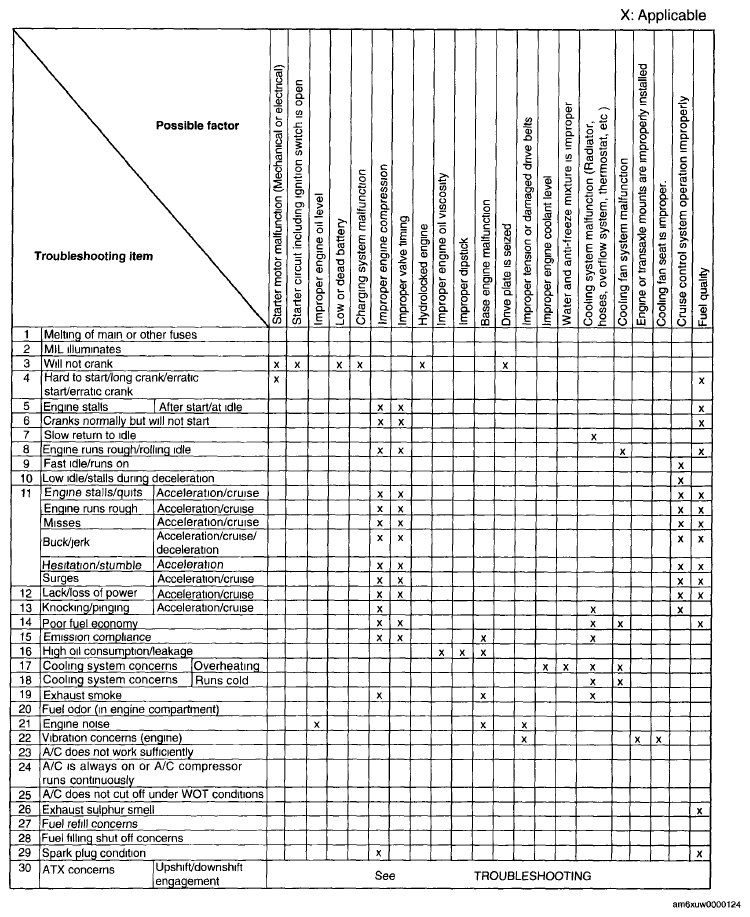

Fig 1: Quick Diagnostic Chart [MZI-3.7] (1 Of 4)

Courtesy of MAZDA MOTORS CORP.

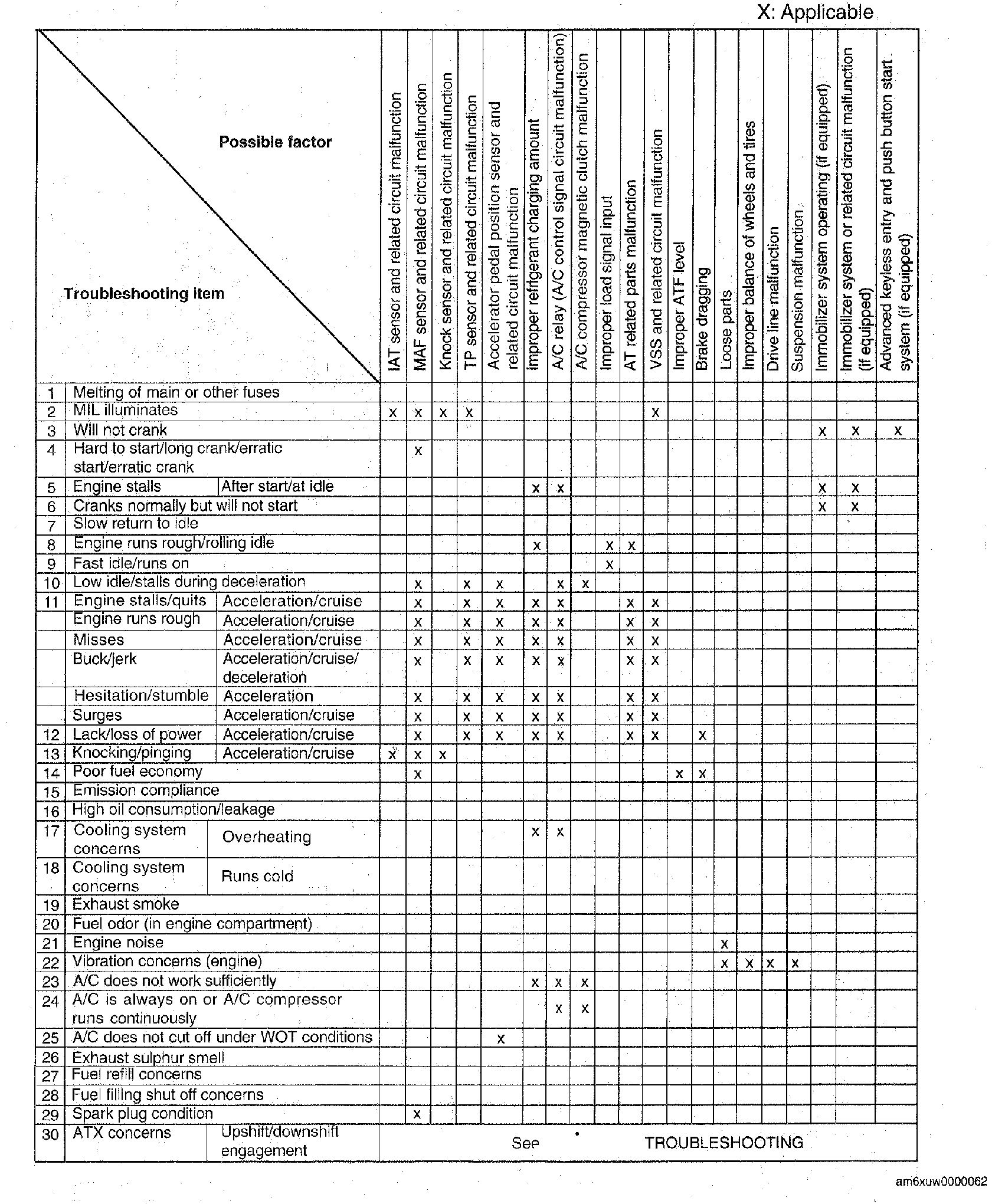

Fig 2: Quick Diagnostic Chart [MZI-3.7] (2 Of 4)

Courtesy of MAZDA MOTORS CORP.

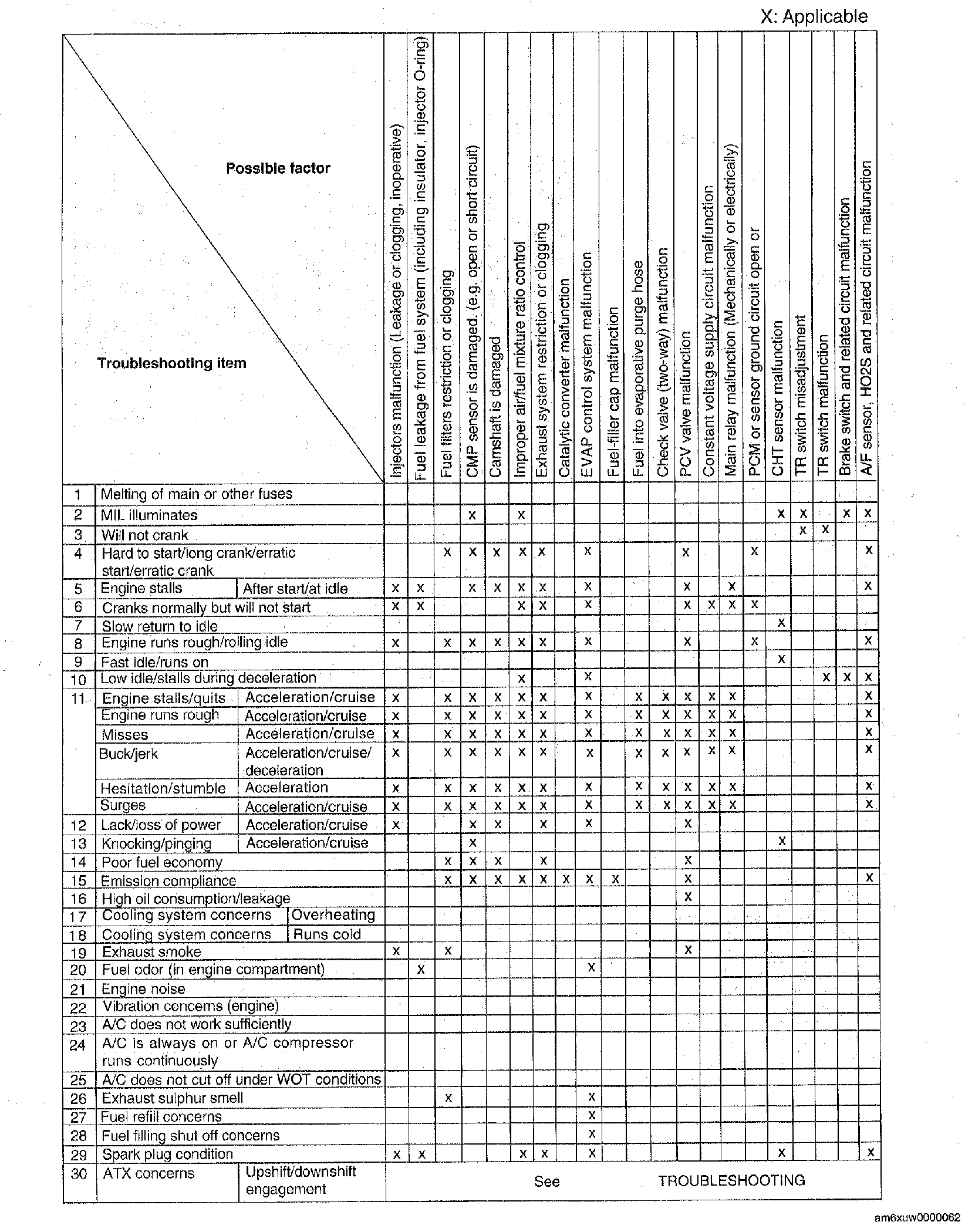

Fig 3: Quick Diagnostic Chart [MZI-3.7] (3 Of 4)

Courtesy of MAZDA MOTORS CORP.

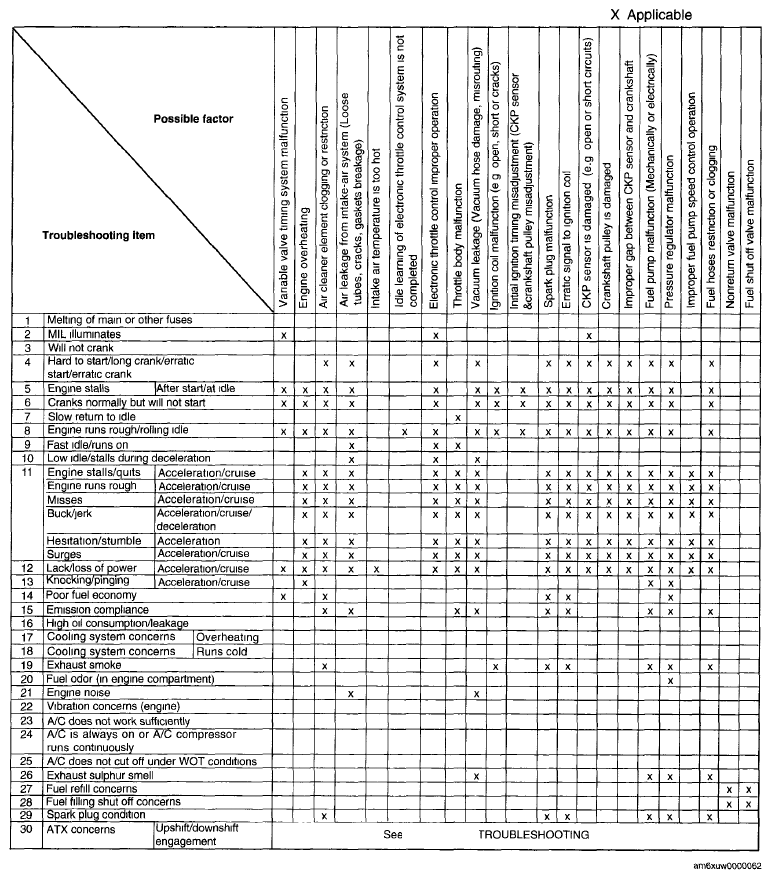

Fig 4: Quick Diagnostic Chart [MZI-3.7] (4 Of 4)

Courtesy of MAZDA MOTORS CORP.
