No. 3 Will Not Crank [MZI-3.7]: Notes
WARNING: This page is about a different car, the 2009 Mazda 6. However, it is still accessible from the selected car via links, so may be relevant.
DESCRIPTION AND POSSIBLE
| 3 |
WILL NOT CRANK |
| DESCRIPTION |
The starter does not work |
| POSSIBLE CAUSE |
- Open starter circuit between ignition switch and starter
- Starter relay No. 2 malfunction

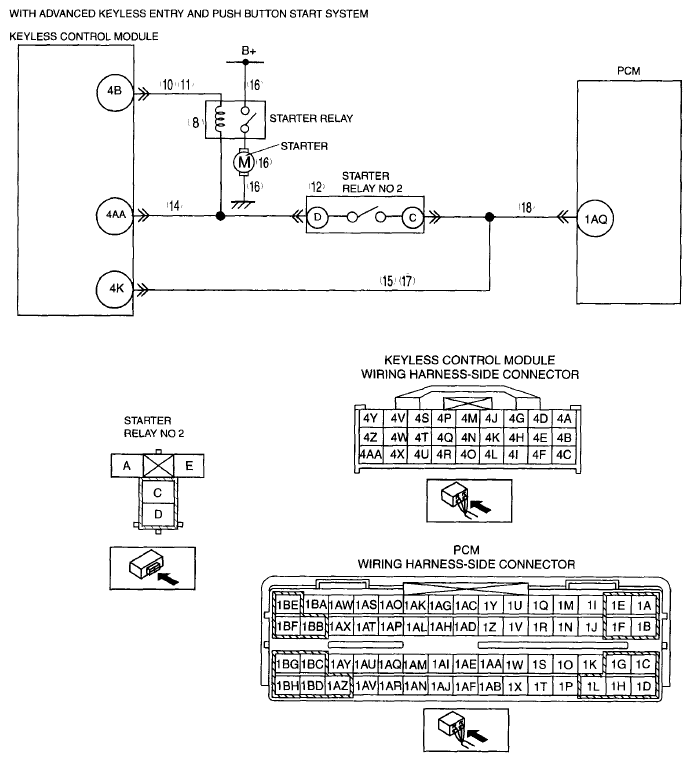

- Open or short circuit in the wiring harness between the keyless control module and starter relay No. 2 (with advanced keyless entry and push button start system)
- Low or dead battery
- Charging system malfunction.
- Starter malfunction
- Seized/hydrolocked engine, drive plate
- Immobilizer system and/or circuit malfunction
- Immobilizer system operating properly (Ignition key is not registered)
- Advanced keyless entry and push button start system malfunction (with advanced keyless entry and push button start system)
- TR switch malfunction
|
 Courtesy of MAZDA MOTORS CORP.
|
