Upper Timing Chain Guide (RH) Removal Note

WARNING: This page is about a different car, the 2009 Mazda 6. However, it is still accessible from the selected car via links, so may be relevant.
  1. Loosen the upper timing chain guide (RH) bolt A.
  2. Remove the upper timing chain guide (RH) bolt B.

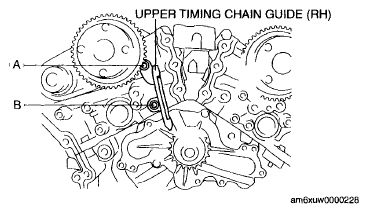

    Fig 1: Identifying Upper Timing Chain Guide Bolt (RH)
    G06199897Courtesy of MAZDA MOTORS CORP.
  3. Move the upper timing chain guide (RH) as shown in the figure.
  4. Retighten the bolt A.
    Fig 2: Identifying Upper Timing Chain Guide And Bolt (RH)
    G06199897Courtesy of MAZDA MOTORS CORP.
