Rear Oil Seal Replacement [MZI-3.7]: Notes

WARNING: This page is about a different car, the 2009 Mazda 6. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the automatic transaxle. (See AUTOMATIC TRANSAXLE REMOVAL/INSTALLATION [AW6A-EL] .)
  2. Remove the drive plate. (See DRIVE PLATE REMOVAL/INSTALLATION [AW6A-EL] .)
  3. Remove in the order indicated in the table.

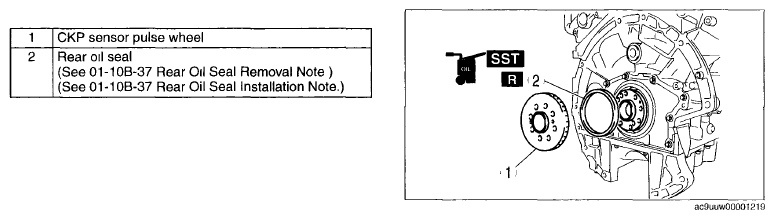

    4. Fig 1: Identifying Rear Oil Seal & CKP Sensor Pulse Wheel
    G06199323Courtesy of MAZDA MOTORS CORP.
  4. Install in the reverse order of removal.
