Front Oil Seal Replacement [MZI-3.7]: Notes

WARNING: This page is about a different car, the 2009 Mazda 6. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect the negative battery cable
  2. Remove the engine cover (See ENGINE COVER REMOVAL/INSTALLATION [MZI-3.7] .)
  3. Remove the both front wheels and tires (RH). (See GENERAL PROCEDURES (SUSPENSION) .)
  4. Remove the splash shield (RH).
  5. Remove the generator and A/C drive belt. (See DRIVE BELT REMOVAL/INSTALLATION [MZI-3.7] )
  6. Remove the power steering oil pump drive belt (See DRIVE BELT REMOVAL/INSTALLATION [MZI-3.7] )
  7. Remove in the order indicated in the table

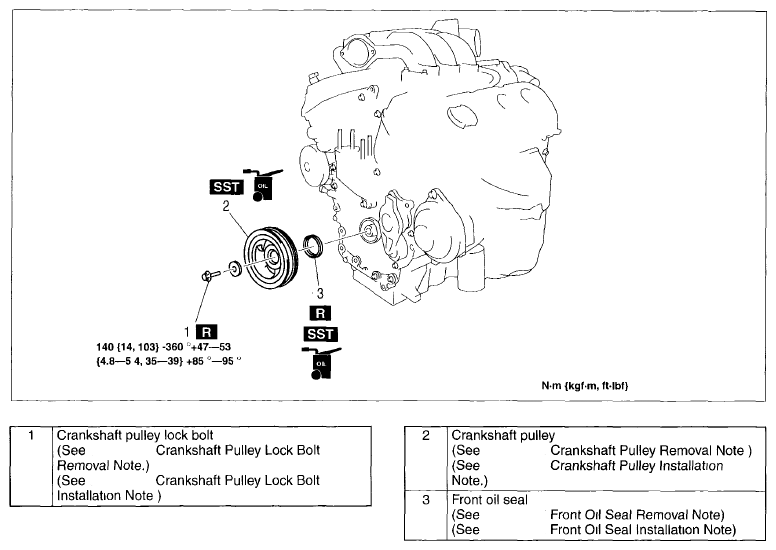

    8. Fig 1: Front Oil Seal Replacement Components With Torque Specifications
    G06199312Courtesy of MAZDA MOTORS CORP.
  8. Install in the reverse order of removal
