Cylinder Head Removal Note

WARNING: This page is about a different car, the 2009 Mazda 6. However, it is still accessible from the selected car via links, so may be relevant.
  1. Loosen the cylinder head bolts in several passes in the order shown.

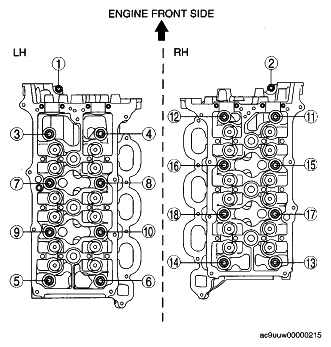

    Fig 1: Identifying Cylinder Head Bolt Loosening Sequence
    G04969405Courtesy of MAZDA MOTORS CORP.
