No. 4 Engine Mount Removal Note

WARNING: This page is about a different car, the 2009 Mazda 6. However, it is still accessible from the selected car via links, so may be relevant.

Install the SST using the following procedure.
CAUTION:
- Refer to the SST instruction information for the basic handing procedure.

  Fig 1: Identifying Engine Support SST
  Courtesy of MAZDA MOTORS CORP.

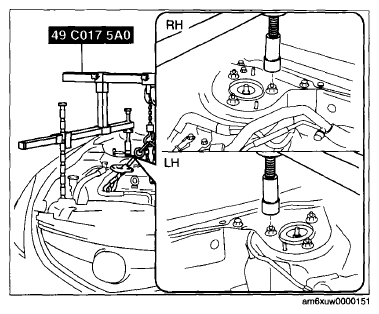

1. As shown in the figure, set the rear shafts of the SST to the left and right shock absorber installation nut.

  Fig 2: Identifying SST On Shock Absorber
  Courtesy of MAZDA MOTORS CORP.

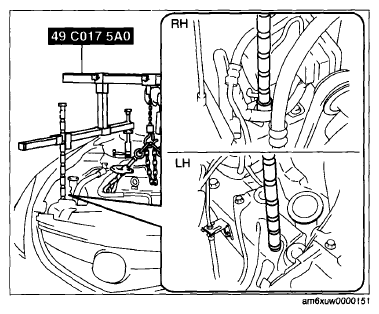

2. Install front foot No. 2 to the left/right front shaft of the SST , then align the groove of the front shaft of the SST with the folded up part of the vehicle as shown in the figure.
3. Adjust the positions of the SST side bars so that they are the same height (left and right) and horizontal.
4. Make sure each joint is securely tightened.

  Fig 3: Identifying SST On Front Shaft
  Courtesy of MAZDA MOTORS CORP.
Support the engine using the SST.
Remove the No. 4 engine mount rubber and bracket.

Fig 4: Supporting Engine With SST
Courtesy of MAZDA MOTORS CORP.
