Manual Transaxle Location Index [G66M-R]

WARNING: This page is about a different car, the 2009 Mazda 6. However, it is still accessible from the selected car via links, so may be relevant.

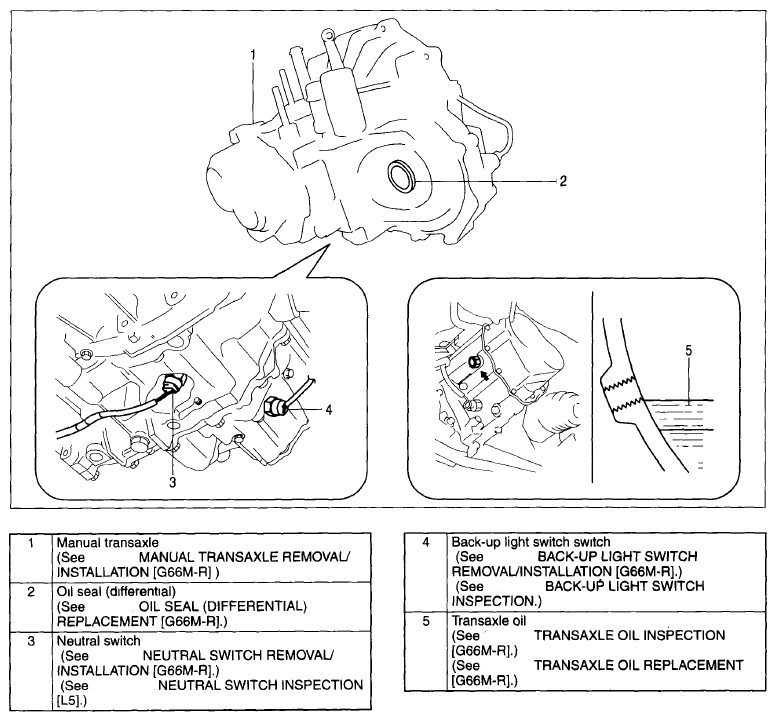

Fig 1: Identifying Manual Transaxle Location
G06205808Courtesy of MAZDA MOTORS CORP.
