Clutch Release Cylinder Disassembly/Assembly

WARNING: This page is about a different car, the 2009 Mazda 6. However, it is still accessible from the selected car via links, so may be relevant.

Disassemble in the order indicated in the table.
Assemble in the reverse order of disassembly.

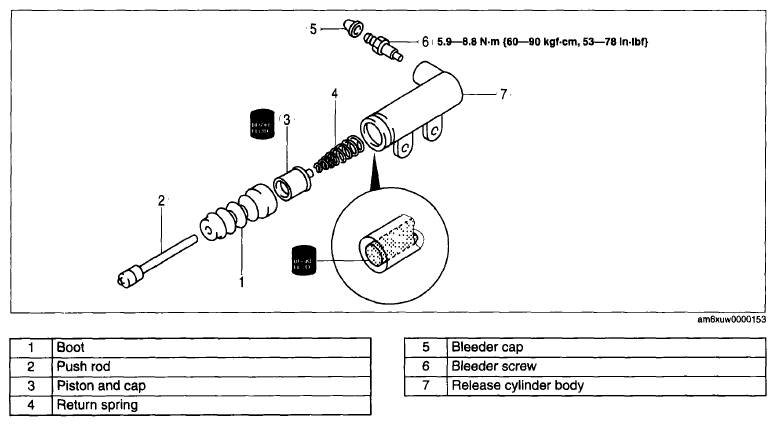

Fig 1: View Of Disassembling/Reassembling Clutch Release Cylinder With Torque Specifications
Courtesy of MAZDA MOTORS CORP.
