Brake Hose (Rear) Removal/Installation

WARNING: This page is about a different car, the 2009 Mazda 6. However, it is still accessible from the selected car via links, so may be relevant.

Remove in the order indicated in the table.
Install in the reverse order of removal.
Add brake fluid, bleed the brakes, and inspect for leakage after the installation has been completed. See AIR BLEEDING .

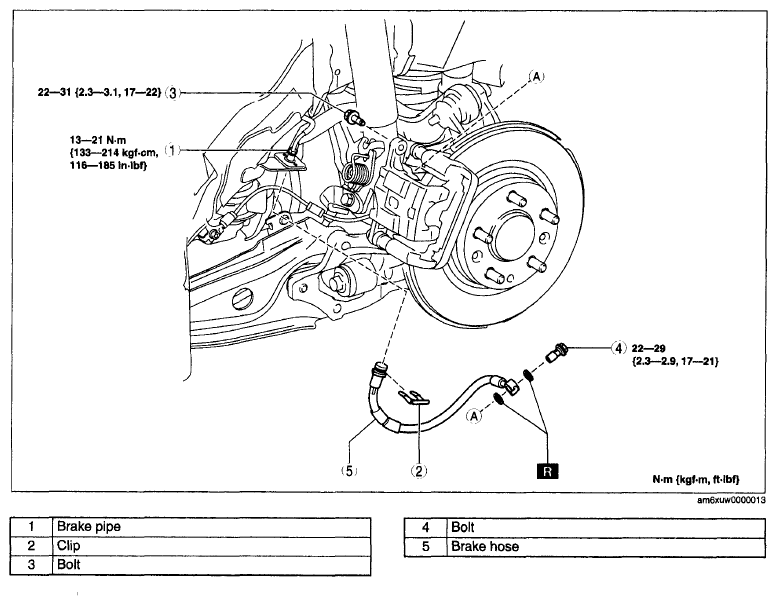

Fig 1: Brake Hose Removal/Installation Order With Torque Specifications (Rear)
Courtesy of MAZDA MOTORS CORP.
