WARNING: This page is about a different car, the 2009 Mazda 6. However, it is still accessible from the selected car via links, so may be relevant.

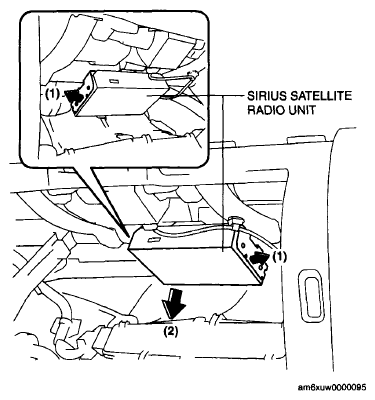

Spread the SIRIUS satellite radio unit bracket apart in the direction of the arrow shown in the figure (1) to remove the SIRIUS satellite radio unit (2).
