GPS Antenna Removal/Installation

WARNING: This page is about a different car, the 2009 Mazda 6. However, it is still accessible from the selected car via links, so may be relevant.

Disconnect the negative battery cable.
Remove the center panel upper. See CENTER PANEL UPPER REMOVAL/INSTALLATION .
Remove in the order indicated in the table.

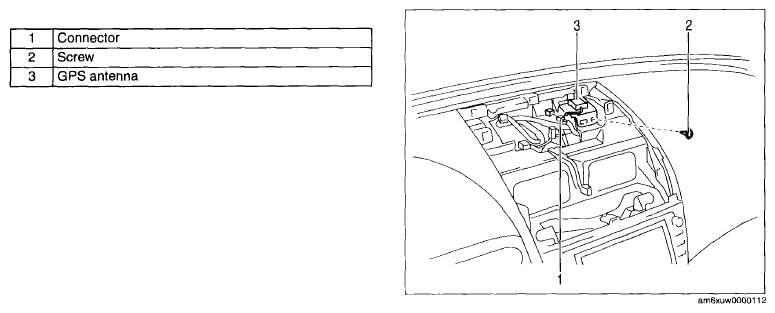

Fig 1: Identifying GPS Antenna, Screw And Connector
Courtesy of MAZDA MOTORS CORP.
Install in the reverse order of removal
