Auxiliary Jack Removal/Installation

WARNING: This page is about a different car, the 2009 Mazda 6. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect the negative battery cable.
  2. Remove the following parts:
    1. Upper panel. See UPPER PANEL REMOVAL/INSTALLATION .
    2. Shift knob (MTX). See MANUAL TRANSAXLE SHIFT MECHANISM REMOVAL/INSTALLATION .
    3. Shift panel. See SHIFT PANEL REMOVAL/INSTALLATION .
    4. Decoration panel. See DECORATION PANEL REMOVAL/INSTALLATION .
    5. Center panel lower. See CENTER PANEL LOWER REMOVAL/INSTALLATION .
    6. Rear console. See REAR CONSOLE DISASSEMBLY/ASSEMBLY .
  3. Remove the auxiliary jack in the direction of the arrow (2) shown in the figure while pressing the auxiliary jack tabs in the direction of the arrow (1).
  4. Install in the reverse order of removal.

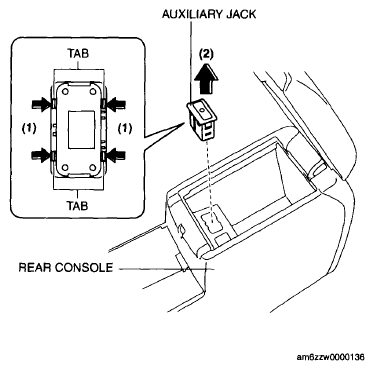

    Fig 1: Removing Auxiliary Jack
    G06201201Courtesy of MAZDA MOTORS CORP.
