Antenna Feeder Location

WARNING: This page is about a different car, the 2009 Mazda 6. However, it is still accessible from the selected car via links, so may be relevant.

NOTE:

GPS antenna feeder is integrated in the instrument panel wiring harness.

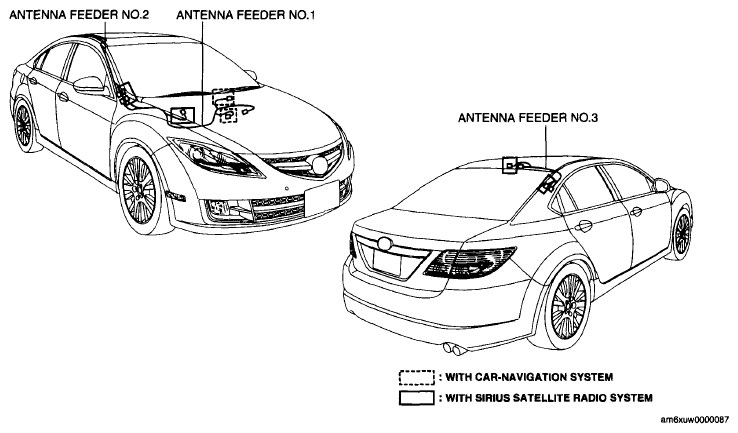

Fig 1: Identifying Antenna Feeder Location
Courtesy of MAZDA MOTORS CORP.
