AUDIOPILOT Microphone Removal/Installation
WARNING: This page is about a different car, the 2009 Mazda 6. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
- "AUDIOPILOT" is a registered trademark of Bose® Corporation.
- Disconnect the negative battery cable

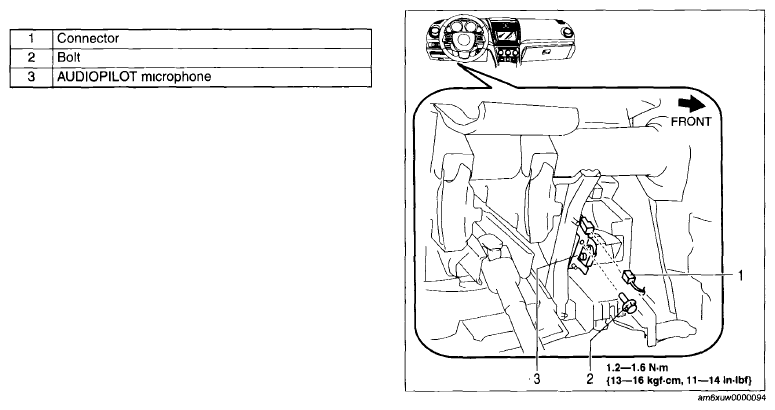

- Remove in the order indicated in the table.
Courtesy of MAZDA MOTORS CORP.
- Install in the reverse order of removal
