Generator Disassembly/Assembly [L5]

WARNING: This page is about a different car, the 2009 Mazda 6. However, it is still accessible from the selected car via links, so may be relevant.

CAUTION:

Melt the solder quickly, otherwise the diodes (rectifier) and regulator will be damaged by excessive heat.

Disassemble in the order indicated in the table.
Assemble in the reverse order of disassembly.

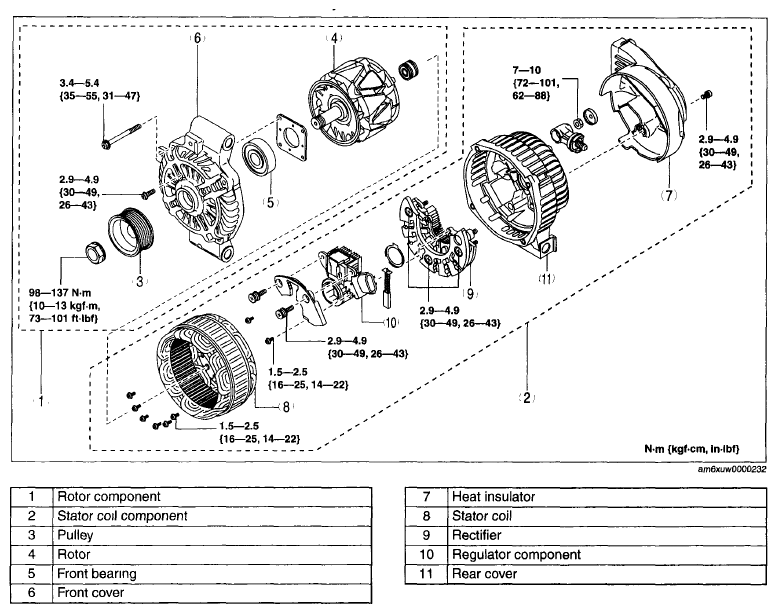

Fig 1: Generator Replacement Components With Torque Specifications

Courtesy of MAZDA MOTORS CORP.
