On-Board Diagnostic Wiring Diagram [Instrument Cluster]

WARNING: This page is about a different car, the 2009 Mazda 6. However, it is still accessible from the selected car via links, so may be relevant.

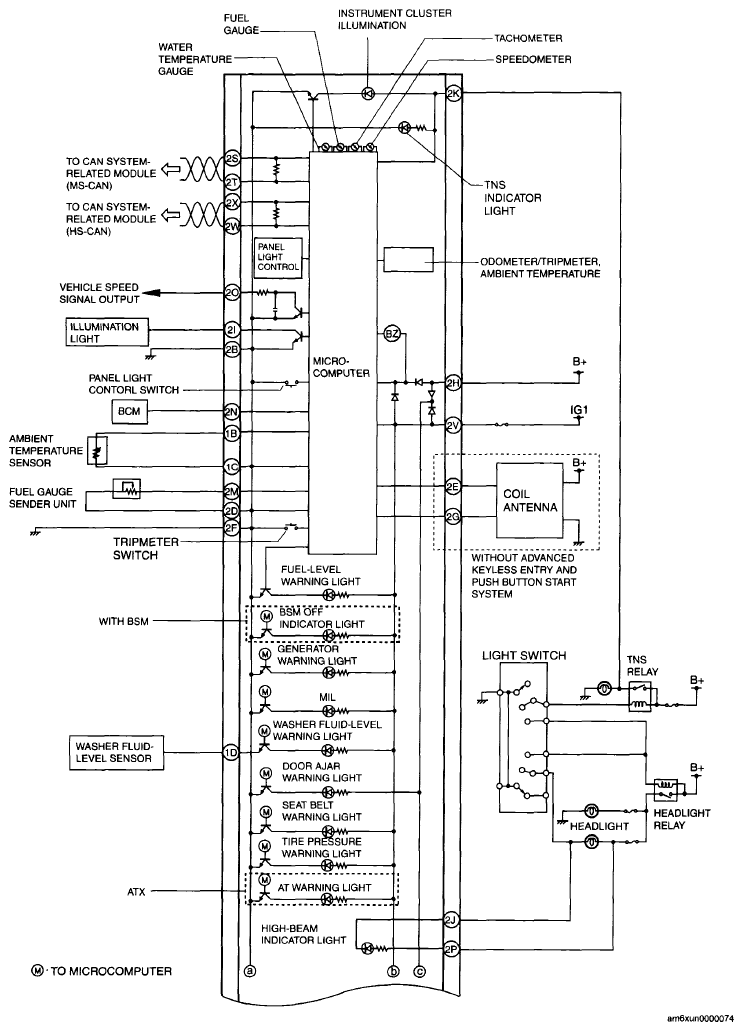

Fig 1: On-Board Diagnostic Wiring Diagram (1 Of 2)

Courtesy of MAZDA MOTORS CORP.

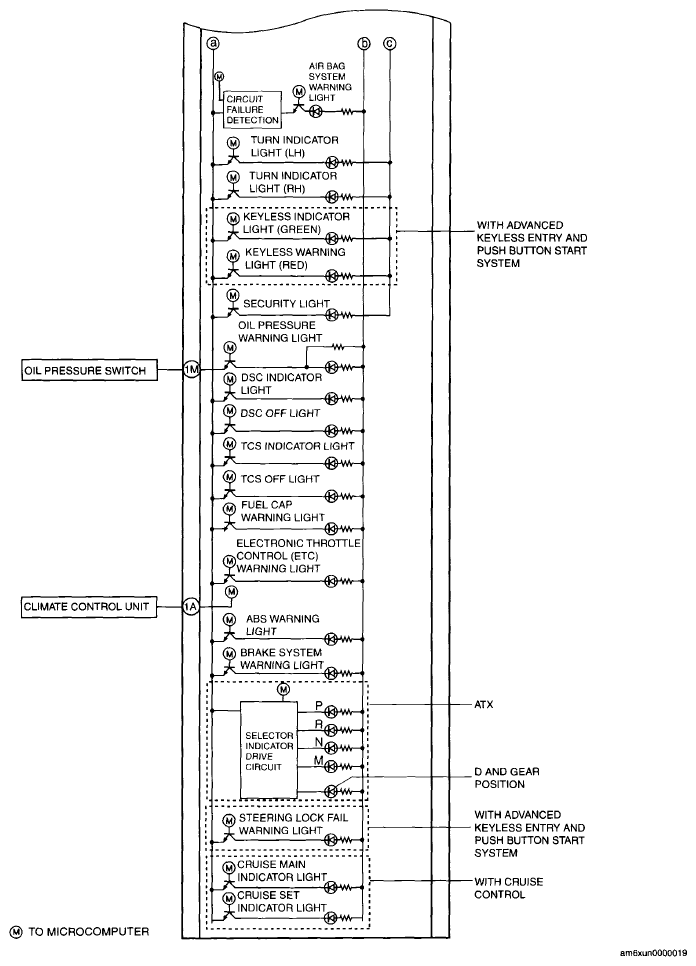

Fig 2: On-Board Diagnostic Wiring Diagram (2 Of 2)

Courtesy of MAZDA MOTORS CORP.
