DTC P0070:14 [Instrument Cluster]: Notes
WARNING: This page is about a different car, the 2009 Mazda 6. However, it is still accessible from the selected car via links, so may be relevant.
DETECTION CONDITION AND POSSIBLE CAUSE
| DESCRIPTION |
Ambient temperature sensor circuit malfunction |
| DETECTION CONDITION |

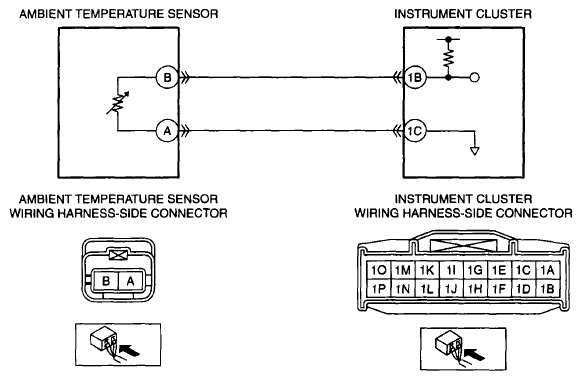

Short to ground or open circuit in wiring harness between ambient temperature sensor and instrument cluster |
| POSSIBLE CAUSE |
- Connector or terminal malfunction
- Short to ground in wiring harness between ambient temperature sensor terminal B and instrument cluster terminal 1B
- Ambient temperature sensor malfunction
- Open circuit in wiring harness between ambient temperature sensor terminal B and instrument cluster terminal 1B
- Open circuit in wiring harness between ambient temperature sensor terminal A and instrument cluster terminal 1C
- Instrument cluster malfunction
|
 Courtesy of MAZDA MOTORS CORP.
|
