Exhaust System Removal/Installation [L5]: Notes

WARNING: This page is about a different car, the 2009 Mazda 6. However, it is still accessible from the selected car via links, so may be relevant.
WARNING:
  • A hot engine and exhaust system can cause severe burns. Turn off the engine and wait until they are cool before removing the exhaust system.
  1. Disconnect the negative battery cable.
  2. Remove the plug hole plate. (See PLUG HOLE PLATE REMOVAL/INSTALLATION [L5] ).
  3. Remove in the order indicated in the table.
  4. Remove the insulator. (See EXHAUST SYSTEM INSULATOR REMOVAL/INSTALLATION NOTE .
  5. Install in the reverse order of removal.

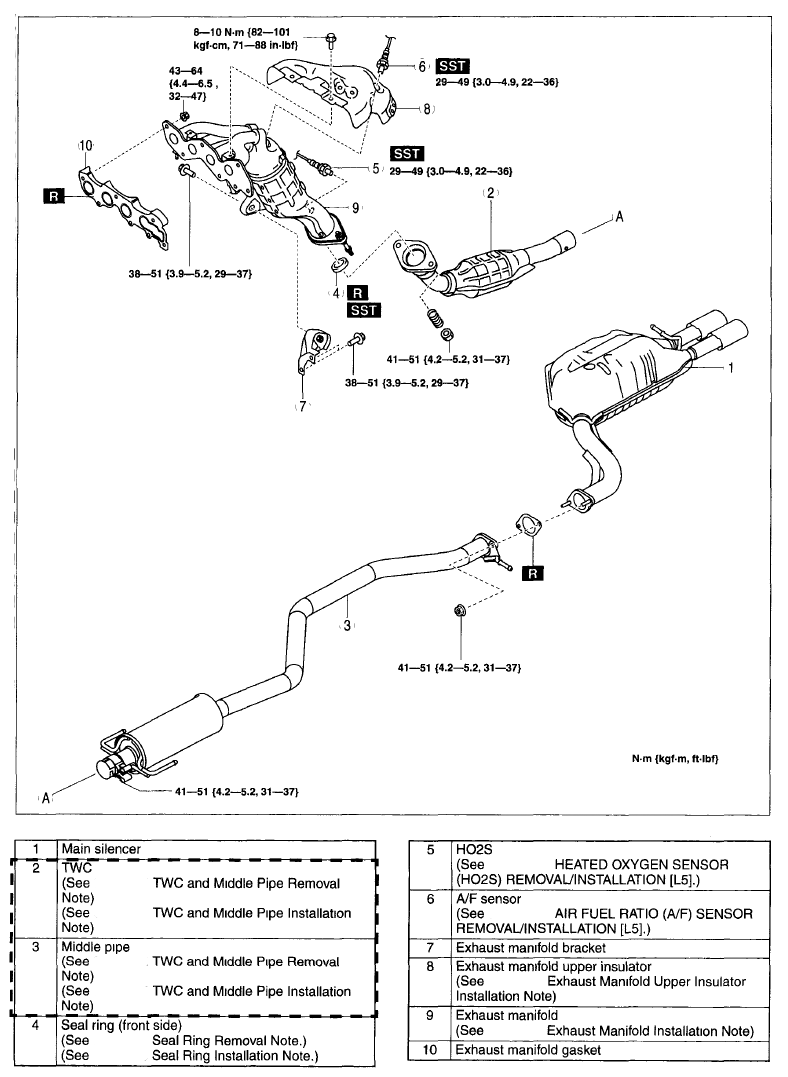

Fig 1: Exhaust System Replacement Components With Torque Specifications
G06205041Courtesy of MAZDA MOTORS CORP.
