Ignition Coil Removal/Installation [L5]

WARNING: This page is about a different car, the 2009 Mazda 6. However, it is still accessible from the selected car via links, so may be relevant.

Disconnect the negative battery cable.
Remove the plug hole plate. (See PLUG HOLE PLATE REMOVAL/INSTALLATION [L5] ).
Remove in the order indicated in the table.
Install in the reverse order of removal.

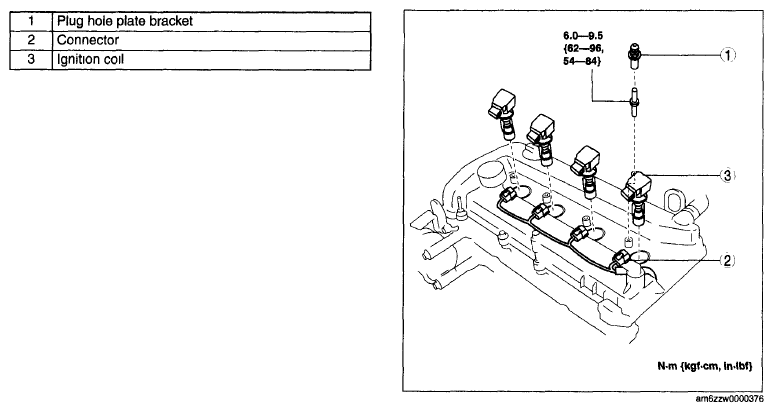

Fig 1: Plug Hole Plate Bracket, Connector And Ignition Coil With Torque Specifications
Courtesy of MAZDA MOTORS CORP.
