Positive Crankcase Ventilation (PCV) Valve Removal/Installation [L5]: Notes

WARNING: This page is about a different car, the 2009 Mazda 6. However, it is still accessible from the selected car via links, so may be relevant.

CAUTION:

Parts for engines manufactured in Mexico and Hiroshima cannot be used interchangeably as the engine will not operate correctly resulting in a serious malfunction. To prevent this, when replacing parts refer to the 'VEHICLE IDENTIFICATION NUMBER (VIN) CODE ' table below and verify the engine's place of manufacture before performing the servicing. See VEHICLE IDENTIFICATION NUMBER (VIN) CODE )

Disconnect the negative battery cable. See BATTERY REMOVAL/INSTALLATION [L5] .
Remove the intake manifold and the fuel distributor component as a single unit. See INTAKE-AIR SYSTEM REMOVAL/INSTALLATION [L5] .
Remove in the order indicated in the table.

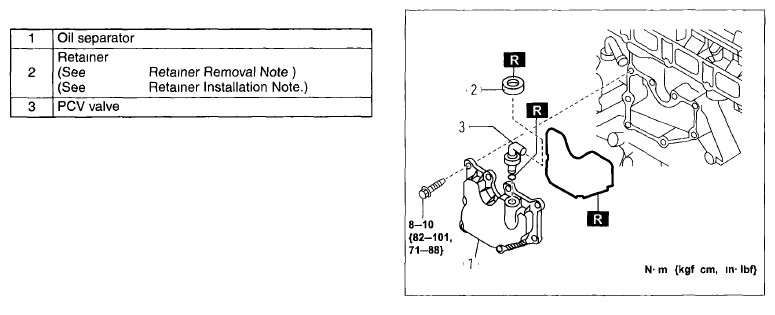

Fig 1: Identifying PCV Valve, Retainer And Oil Separator
Courtesy of MAZDA MOTORS CORP.
Install in the reverse order of removal.
