Joint Hose Installation Note

WARNING: This page is about a different car, the 2009 Mazda 6. However, it is still accessible from the selected car via links, so may be relevant.

Install the joint hose and clamp as shown in the figure.

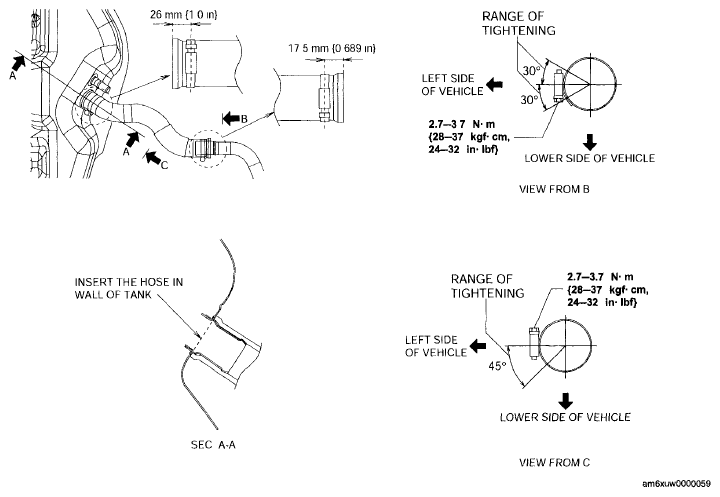

Fig 1: Joint Hose And Clamp With Torque Specifications

Courtesy of MAZDA MOTORS CORP.
