Fuel Injector Removal/Installation [L5]: Notes

WARNING: This page is about a different car, the 2009 Mazda 6. However, it is still accessible from the selected car via links, so may be relevant.
  1. Complete the "BEFORE SERVICE PRECAUTION". See BEFORE SERVICE PRECAUTION [L5]. )
  2. Disconnect the negative battery cable.
  3. Remove the plug hole plate.
  4. Disconnect the fuel injector connector.
  5. Remove in the order indicated in the table.
  6. Install in the reverse order of removal.
  7. Complete the "AFTER SERVICE PRECAUTION". See AFTER SERVICE PRECAUTION [L5]. )

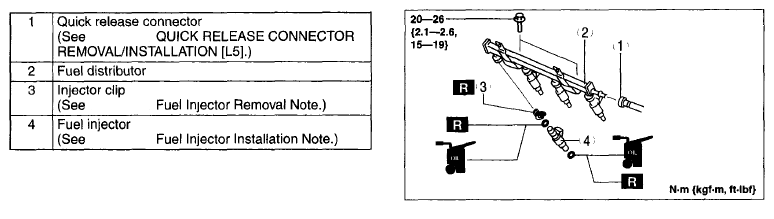

Fig 1: Identifying Fuel Distributor And Quick Release Connector
G06205003Courtesy of MAZDA MOTORS CORP.
