Vacuum Hose Installation Note

WARNING: This page is about a different car, the 2009 Mazda 6. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the vacuum hose shown in the figure.

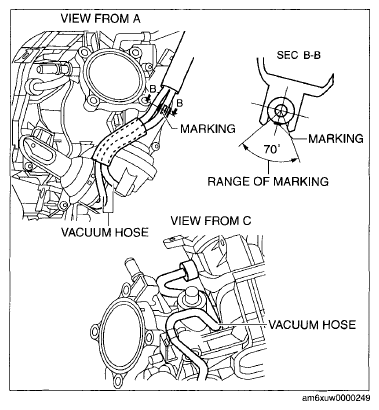

Fig 1: View Of Vacuum Hose Installation
G06204946Courtesy of MAZDA MOTORS CORP.
