No. 3 Engine Mount Installation Note

WARNING: This page is about a different car, the 2009 Mazda 6. However, it is still accessible from the selected car via links, so may be relevant.

NOTE:

If the No. 3 engine mount bracket and the engine are removed, retighten the No. 3 engine mount stud bolts.

Tighten the No. 3 engine mount stud bolts.
Tightening torque

7-13 N.m {72-132 kgf.cm, 62-115 in-lbf}

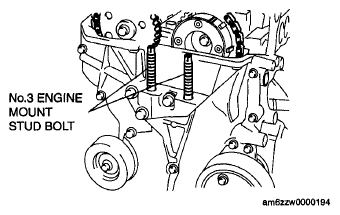

Fig 1: Identifying No. 3 Engine Mount Stud Bolts

Courtesy of MAZDA MOTORS CORP.

Install the No. 3 engine mount rubber hand-tighten.

Tighten the No. 3 engine mount bracket is attached and bolts, nuts in the order as shown.

Fig 2: Identifying No. 3 Engine Mount Bracket Bolt Tightening Sequence

Courtesy of MAZDA MOTORS CORP.

TIGHTENING TORQUE

No.	Tightening torque
1-3	40-54 N.m {4.1-5.5 kgf.m, 30-39 ft.lbf}
4-6	75-104 N.m {7.7-10 kgf.m, 56-76 ft.lbf}
